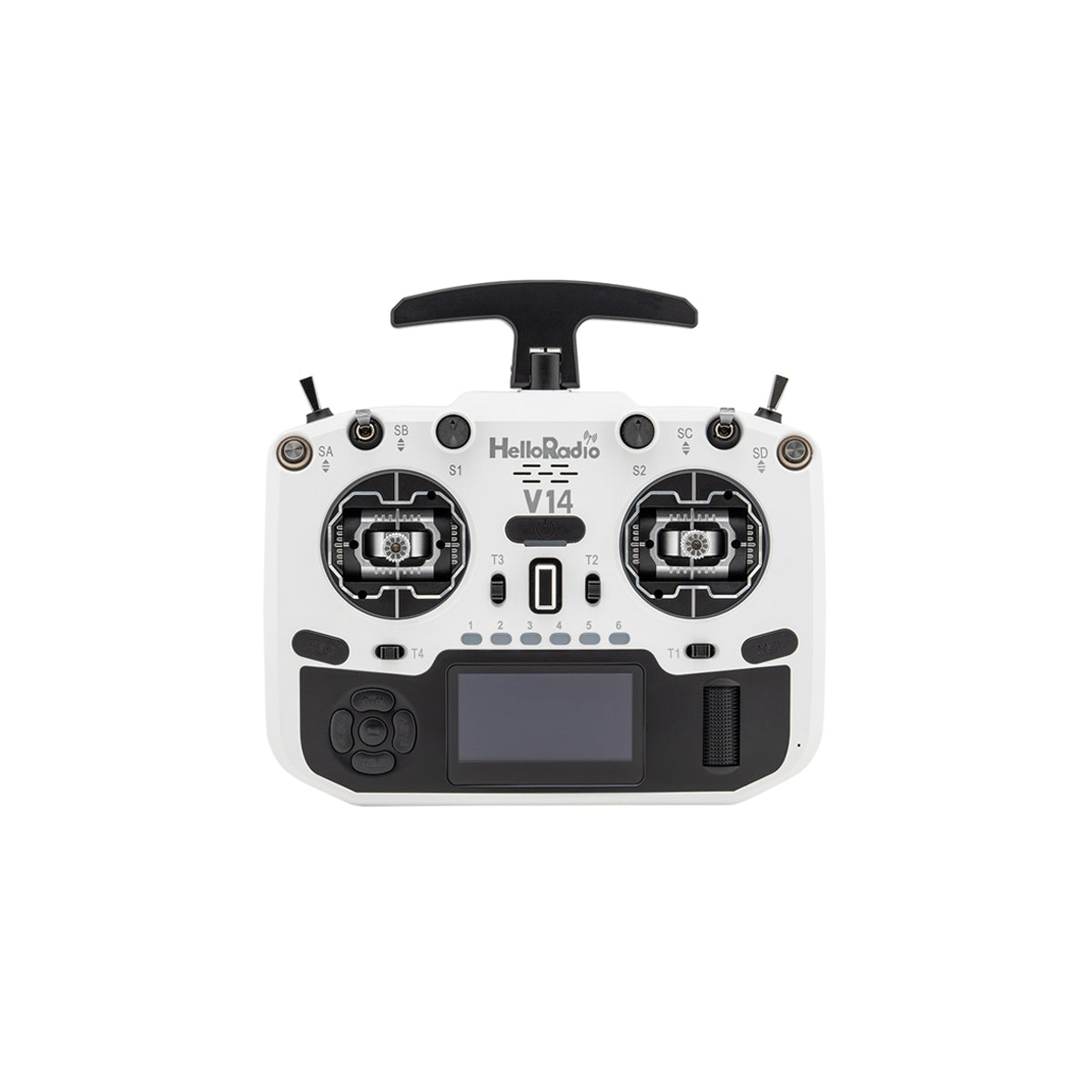

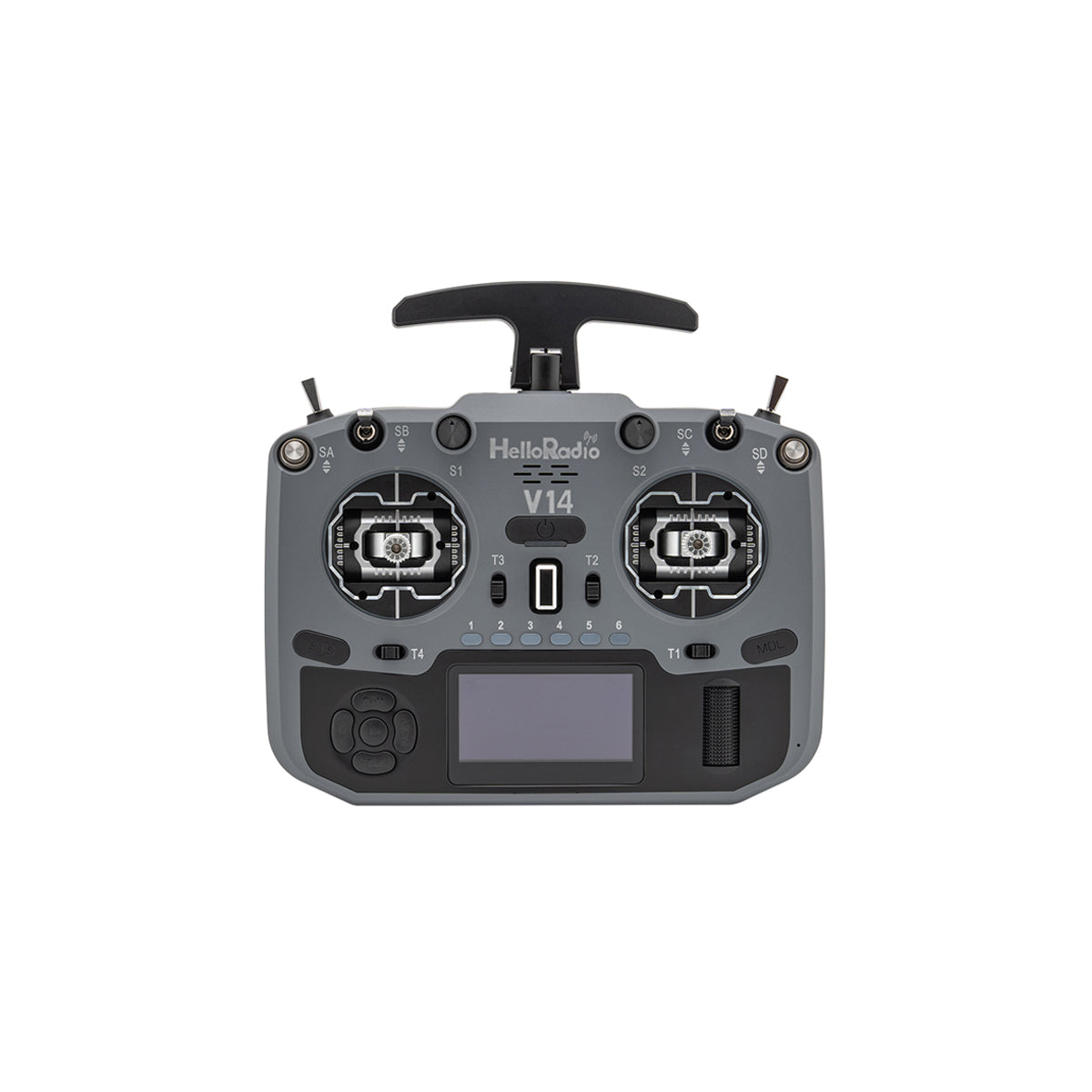

HelloRadio_V14_MAX FPV Transmitter

HelloRadio_V14_MAX FPV Transmitter

$229.00
$229.00
Sale Ausverkauft
Version

Specifications

Transmission frequency: 2.400GHz-2.480GHz
Internal RF options: ExpressLRS, or 4N1 multi-protocol
Working current: 260mA
Working voltage: 6.6-8.4V DC
Radio firmware: EdgeTX
Channels: 14 channels
Display: OLED, or 128*64 Black-and-white LCD
Gimbal sensor: Hall or RDC90
Module Bay: Compatible with following micro JR bay modules: Multi-Protocol-Module, ExpressLRs, Ghost, TBS
Crossfire, TBS Tracer etc
Upgrade method: Supports USB-C online / SD card offline upgrade

Approved for use

2 x 3.7v Li-ION 18650 cells (Assembled as 7.4v 2s Battery pack)
2 x 3.7v Li-ION 21700 cells (Assembled as 7.4v 2s Battery pack)
2 x 3.7v Lithium-polymere cells (Assembled as 7.4v 2s Battery pack)
DO NOT use 3.6v Li-ION cells
2S 6.6v LiFE Battery packs LiFEP04 cells
Do not use 2s 6.6v LiFE battery pack, 18650 lithium-ion cells with a nominal voltage of 3.6v or LiFEP04 18650
Round cells. Using the built in USB charger with incorrect battery types and voltage may cause damage to the
remote control or fire.
Check the health and condition of the batteries regularly. Do not use damaged cells. Never charge your device
unattended. Always charge in a safe area away from flammable materials. If the remote control gets wet or
damaged in any way, do not charge it.
HelloRadioSky is not responsible for any adverse consequences caused by using or misusing this device.

EU Simple Declaration of Conformity

HelloRadioSky declares the radio equipment V 14 is in compliance with EU directives Directive 2014/53/EU. Full
text of the declaration of conformity is available at the following website www.helloradiosky.com

Manufactured by

ShenZhen HelloRadioSky Technology Co., Ltd

FCC statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Full text of the declaration of conformity is available at the following website www.HelloRadioSky.com

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. This product contains a radio transmitter with wireless technology which has
been tested and found to be compliant with the applicable regulations governing a radio transmitter in the
2.400GHz to 2.4835GHz frequency range.
