YMZFPV Eagle2 HD O4 Pro Smallest 1.4/1.6 Inch 3S Brushless FPV Drone

Summary

Eagle2 is a 3S HD brushless FPV designed for O4 Pro. The fuselage adopts a lightweight and compact design, with a net weight of only 13.3g. With a 1002 motor, it has extremely sufficient power at a 3S voltage. Highly elastic silicone is used for damping to isolate high-frequency vibrations, and the 4K video recorded in O4 Pro is extremely stable. You can start shooting as soon as you receive Eagle2. It is a reliable partner for professional photographers. With excellent structure and beautiful appearance, you will definitely be a very individual and eye-catching guy in the flying party. We have carried out targeted PID tuning and perfect CLI factory settings for Eagle2, so that you can experience the fun of flying without setting it up when you receive Eagle2. Eagle2 is the smallest 3S O4 Pro FPV in mass production and sales, with flexible flight performance and stable flight pictures.

Features:

• The smallest O4 Pro FPV Drone: It can provide excellent 4K/120fps video recording, and can also shoot ultra-wide-angle HD pictures without an external sports camera. It has never been so easy to produce cool blockbusters.
• Compact and portable: Eagle2 weighs only about 68g, can use 35MM-3 Props, and supports up to 1608-3 Props
• Stable picture: Use high-elastic silicone for damping, effectively isolate high-frequency vibration, and the FPV picture and O4 Pro internal 4K video are extremely stable under strong light, without jelly and jitter.
• Powerful power: Use 1002 motor, use 1608-3 Props at 3S voltage, takeoff throttle is about 26%, with extremely sufficient power and linear output. Extremely fun to drive.
• Wide camera space: supports 0-50° adjustable camera angle and is compatible with a variety of ND filters.
• Professional PID tuning and perfect CLI settings: You can enjoy the fun of flying and shooting work as soon as you get it. Excellent low-noise images also provide pilots with huge customization space.
• Excellent and beautiful body design: Exclusively customized Carbon plate and aviation aluminum alloy materials, you are definitely a very individual and eye-catching guy in the flying party. The net weight of the Frame Kit is only about 13.3g.
• Advanced AIO: Use F4-20A AIO, support 2-6S voltage input, with 16MB black box
• Excellent Flight time: 35MM Props movie flight 4:20; 1608-3 Props movie flight 5:30; Freestyle 2:300-3:00

Parameters

• Project: Eagle2 Brushless Quadcopter
• Wheelbase: 91mm
• Motor: 1002 brushless motor
• Frame: E2F
• Propeller: 35MM-3/1608-3
• Image transmission: O4 Pro Unit
• Lens: O4 Pro Camera
• Flight control/ESC: F411-20A AIO/F405-40A AIO
• Receiver: ELRS 2.4G 3.0
• Flight time: 4:20-5:30
• Weight: about 68.0g
• Recommended battery: 3S380mAh90C

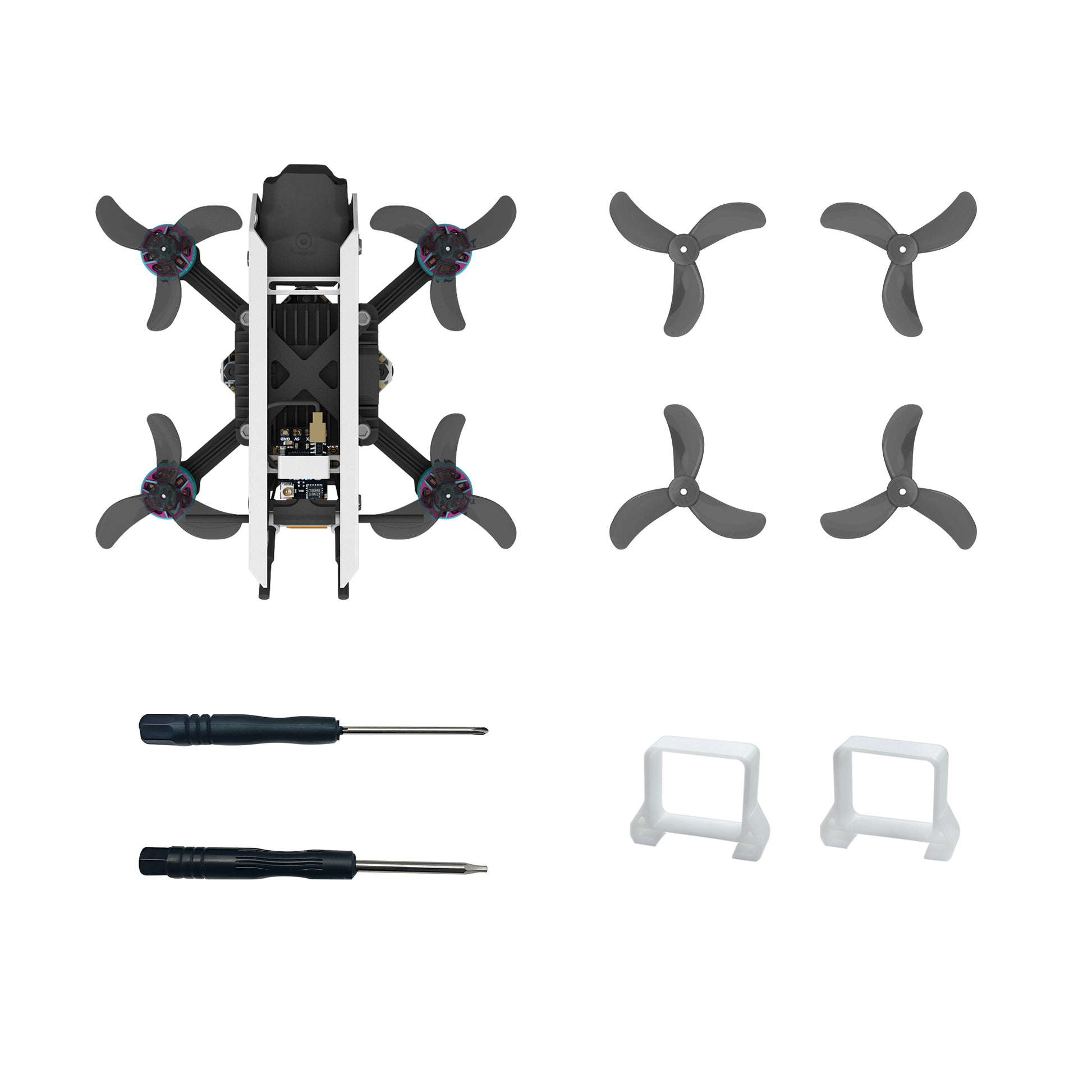

List:

• WalleFPV Eagle2 Brushless Quadcopter x 1
• 1608-3 x 4 Props (pairs)
• M1.5 screwdriver x 1
• Phillips screwdriver x 1
• Battery installation 3D print x 2 (Note: Not Including Battery)

PS:

Hi, I am FPV designer WALLE. The Eagle2 I brought this time is the fifth product after Lightning1, Eagle1, Starship X1, and Lightning2. We borrowed the engineering sample of O4 Pro in 2024. After half a year of design, development, testing, and mass production, we finally meet with pilots.

Each product is an expression of the designer's aesthetics. We insist on original design and reject mediocre design. The Frame Kit design will be bolder and different. WalleFPV is committed to developing TINYFPV with flexible flight, stable picture, and unique shape. Simply put, the soul of WalleFPV is easy to fly, easy to use, and good-looking. The size must be as small as possible. It is not easy to meet all of these. The smaller the size, the higher the difficulty.

Eagle2 is the smallest O4 Pro FPV in mass production. I was also very nervous during the development, worried that the Props size would be too small, resulting in a short flight time. But after a lot of testing, we can achieve a flight time of 4:20-5:30 for movie flight with 1608-3 Props and 4:20 for movie flight with 35MM Props. This is enough for movie shooting, and it can also fly for 2:30-3:00 for intense Freestyle.

The camera has highly elastic silicone on both sides, which effectively isolates high-frequency vibrations. The FPV flight picture and the internal recording picture of O4 Pro are stable, without jitter and jelly phenomenon, which is very suitable for professional FPV movie studios and video producers to complete commercial shooting.

Buy Eagle2 FPV Drone and you can enjoy the fun of flying. The small body and flexible flying posture can fly through the woods and buildings. Read the smooth and stable flight picture and share it to the FPV community or share it with your friends.

Often some customers will compare the price of our products with other TINYFPV manufacturers. From the product definition, this is not the same thing. Some manufacturers are more keen to make cheaper TINYFP to attract more newcomers to join FPV and gain a very large market share. If you only consider the price when buying FPV, then WalleFPV is not your best choice.

In terms of materials, we use customized 24T carbon fiber and 7075 aviation aluminum. The carbon fiber sheet we use is a customized angle layer, and the angle of the unidirectional cloth follows the designed cross angle of the arm to make the plate, so that the arm produced in this way has the maximum rigidity of the carbon fiber sheet. However, the customized angle layer will waste more unidirectional cloth than the ordinary 0 and 90° plate making, and the production time is longer and the production cost is higher. In addition, our arms need to be manually polished to remove burrs, and then two spray-painted and baked processes can be carried out to obtain arms with good texture and good feel. Spray painting also helps to slow down the oxidation rate of carbon fiber.

In the upper part of the Frame Kit, we use 7075 aviation aluminum, which is widely used in the aviation industry, with lighter weight and stronger rigidity. Thanks to the unique design and fine processing, even if we use a large number of aluminum parts, it will not be bulky. The net weight of the Frame kit is 13.3g. Using a lot of aluminum parts also means a significant increase in costs, but you can get a beautiful, textured, lighter, and very rigid Frame Kit, which is very worthwhile.

We have built our own production line, and all FPV Drones are built, tested, and packaged by ourselves. Each FPV Drone will undergo flight tests, image stability tests, and OSD display tests before leaving the factory. To ensure that each FPV Drone is qualified before leaving the factory.

If you have suggestions for WalleFPV products or you have inspiration, please feel free to discuss with me. My email address is wallefpv@gmail.com.
