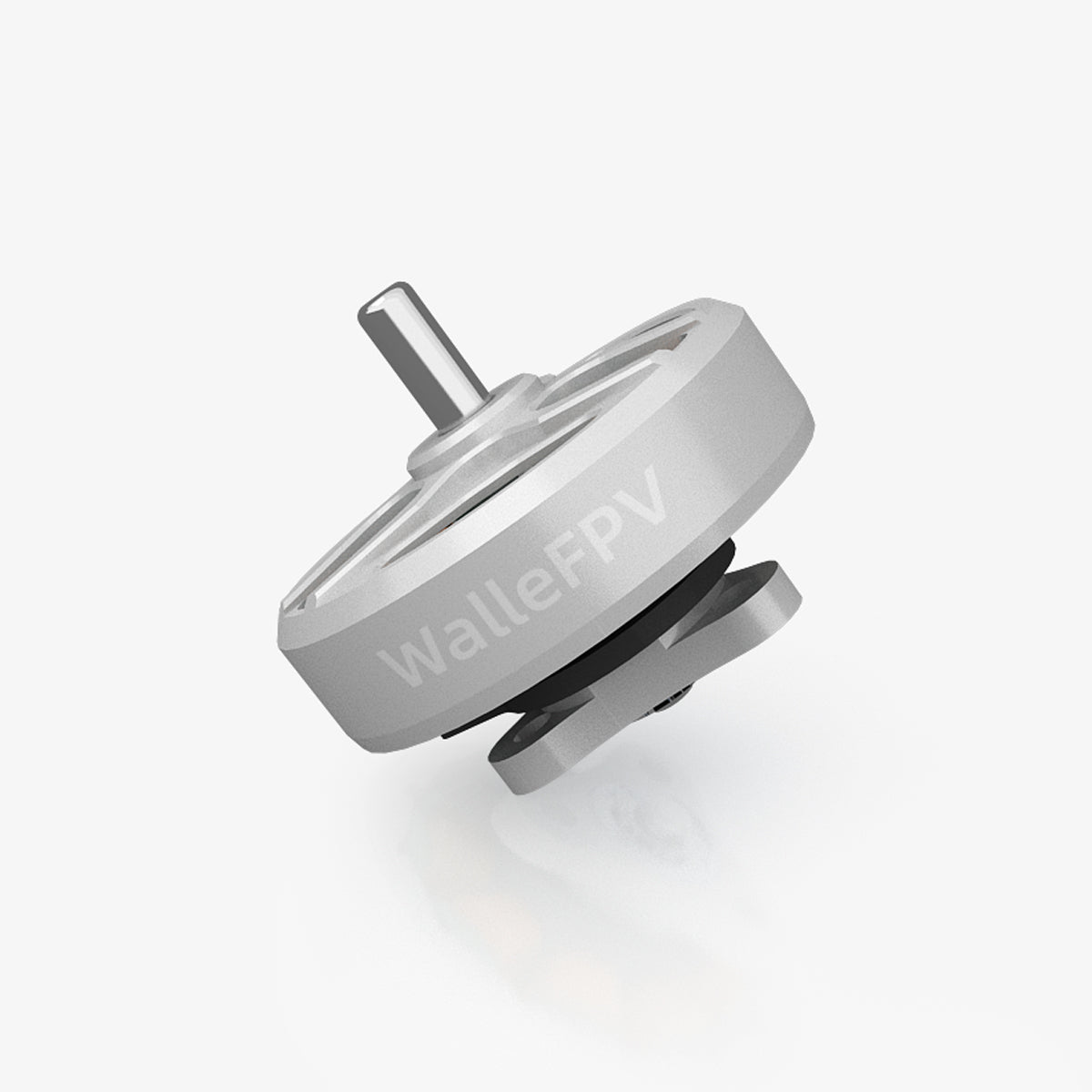

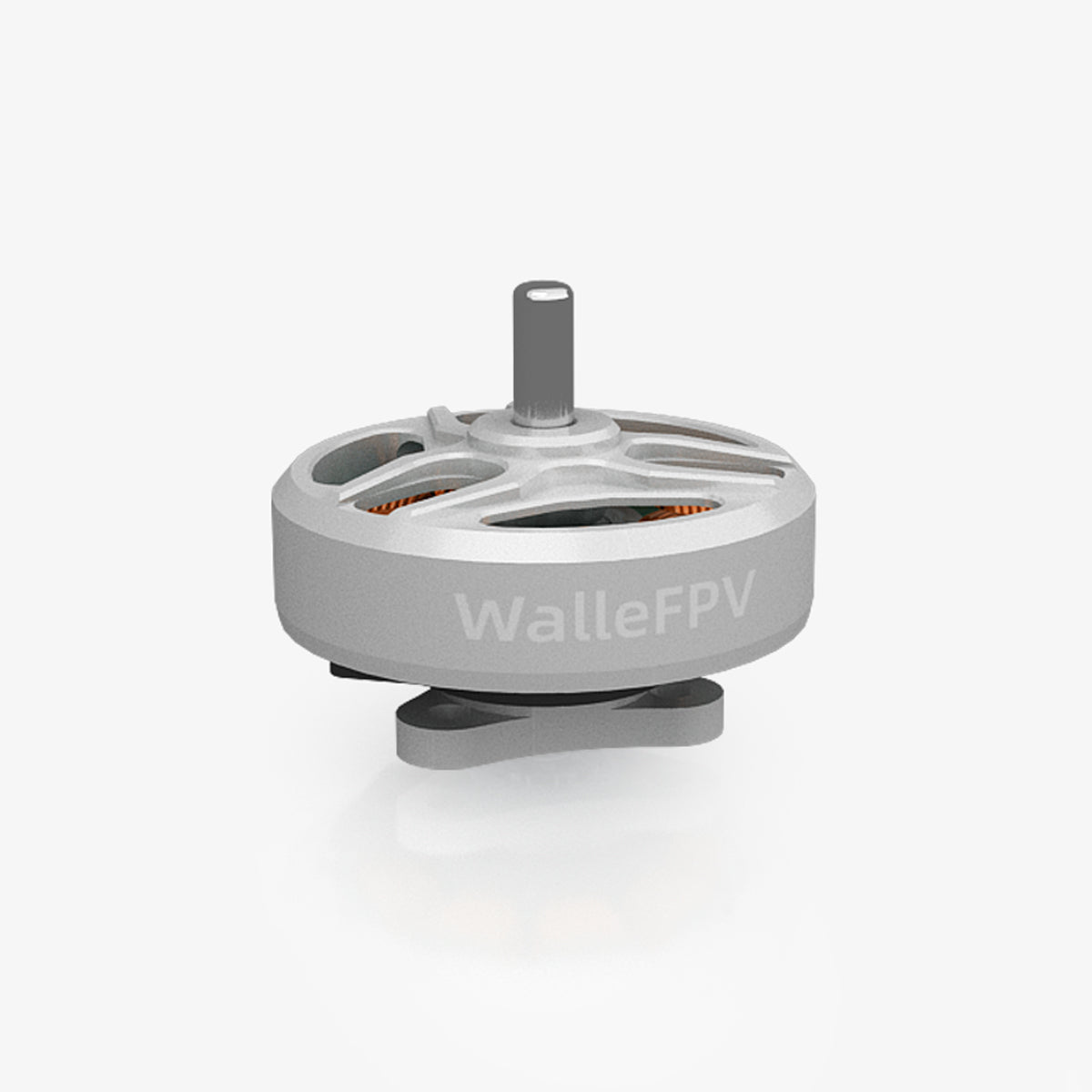

Walle 1002 14000Kv Micro Motor

Walle 1002 14000Kv Micro Motor

Regular price $20.00
Regular price Sale price $20.00
Sale Sold out
Version

summary

Transform your FPV experience with the WalleFPV 1002-14000KV Brushless Motor. This motor boasts impressive power, speed, and torque and will leave you stunned. Dare to go faster, farther, and higher than you ever have!  This motor comes with a a solderless motor connector.

Features

  • Enables agile and efficient flight maneuvers
  • Designed specifically for FPV enthusiasts
  • Compact and powerful microdesign

Specifications

  • KV: 14000
  • Configuration: 9N12P
  • Stator Diameter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension: 13.5x7.75mm
  • Weight: 2.5 Grams (5cm Wires)
  • Idle Current (5 Seconds)@4V: 0.8A
  • No. Of Cells (Lipo): 1-3S
  • Max Continuous Power (W) 3S: 67
  • Internal Resistance: 175mΩ
  • Max Current (3S): 9A
  • Max. Efficiency Current: (1-3A)>84%

Includes

  • WalleFPV 1002 14000KV Micro Motor   x  1
  • Screw Kit  x  1
